This is a set that combines the necessary parts centered around the "soldering practice" board sandbox keyboard.
To keep the cost as low as possible, the switches and keycaps are random, and the Pro Micro will be of the Micro USB type.
This is a "soldering practice" board!
First homemade keyboard
First soldering
Isn't it scary to solder directly onto the keyboard you want?
In such cases, let's use this board as a practice platform and get used to soldering before tackling it.
Half of this board is not wired anywhere; it is just for soldering practice. However, the footprints (patterns on the board) used are the same as those actually used in Claw44 and wings42, so you can experience soldering just like in a real situation.
The other half will be recognized as a keyboard if assembled properly.
If you incorporate the parts according to the manual, you can operate it as a keyboard.
We have created a detailed manual for beginners, so please take a look at the "sandbox keyboard v2 build guide".
Set Contents
・sandbox keyboard (Choc V1)

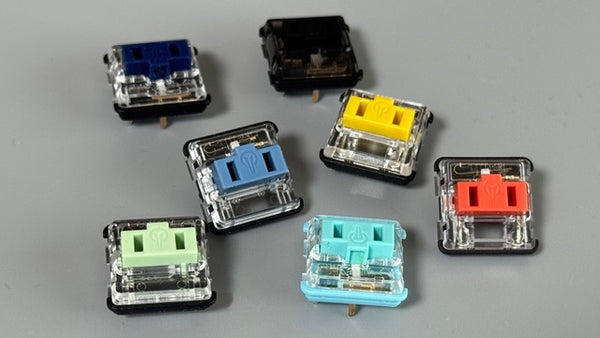

・Choc V1 switch random 1 type 10 pieces

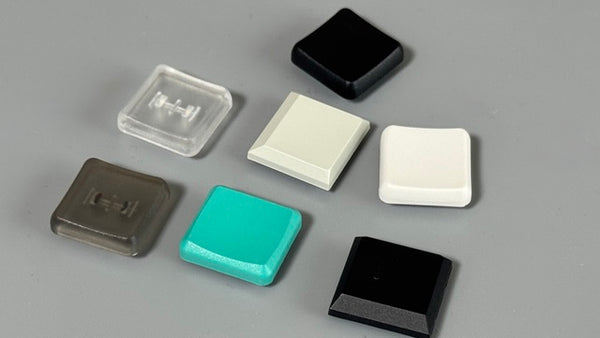

・Choc V1 keycap random 1 type 10 pieces
・PCB socket for key switches 10 pieces (for Choc V1)
・Pro Micro Micro-USB
・Consul through 12 pins 2.5mm (for Pro Micro)
・Diode through-hole type 50 pieces
Other Usable Parts
・Diode SMD type 50 pieces
・Pro Micro Type-C
・TRRS cable
・Diode bender
Notes
The OLED in the photo is not included in the parts.
The photo is a sample and may not be identical to the product contents.
Specifications are subject to change without notice.
If there are any defects, shortages, or other questions about the parts, please contact us through the inquiry form.
