We will ship within 5 days from Tokyo.

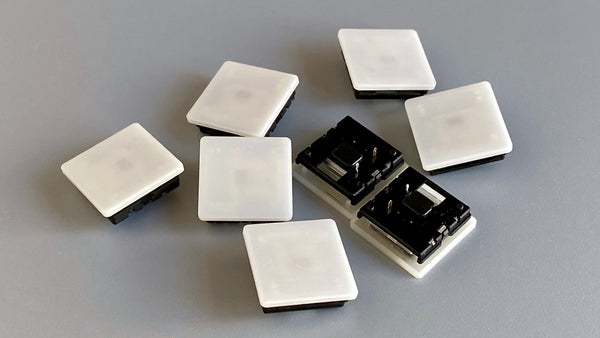

X Switch Tactile Keycap Set (5 pieces)

Regular price ¥2,000

Tax included. Shipping calculated at checkout.

The Kailh X Switch is a tactile brown switch.
This is a set with a key switch and genuine keycap attached.

The key feature is its thinness, measuring 6.5mm in height, which is thinner than Choc switches.

There aren't many examples of home-made keyboards being used, but I thought there would be no one who would make them if there was no domestic supply, so I decided to purchase one. Please try designing a keyboard using X Switch!

For the footprint, shikamiya's kicad-footprint-kailh-pg1425-x-switch can be used as a reference.

Specification:
Profile Dimensions:14.8mm X14.00mm X 2mm
Operation Force: 50±10gf
Tactile Force:60±10gf
Pretravel: 1.2mm ± 0.3mm
Total Travel: 2.0mm ± 0.3mm
Operating Life: 20,000,000 Cycles
