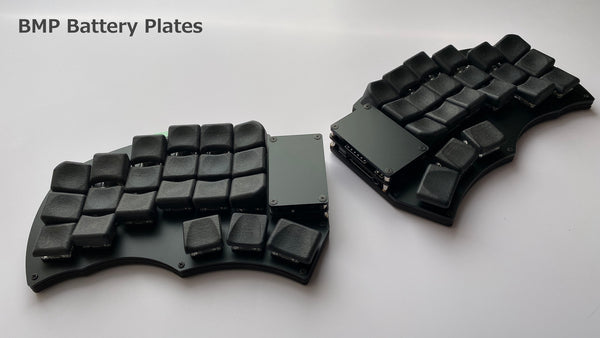

You can use BLE Micro Pro instead of Pro Micro to make a wireless connection.
Since it is a set of only one side, please purchase two if you want to make both left and right wireless.
If you use LPME-IO, you only need one.
・ Cover acrylic plate: 1 sheet
・ Slide switch: 1 (+ 1 spare)
・ Battery holder: 2
・ Schottky diode: 2 + spare
・ Capacitor: 1
・ Screw (4mm): 4
・ Spacer with screw: 4 pieces
・ 2-pin control: 1
Since it is a set of only one side, please purchase two if you want to make both left and right wireless.
If you use LPME-IO, you only need one.
How to assemble
Please check the build guide below.
・Wireless connection
・Wireless connection (left and right connection is wired)
Other necessary items
・ BLE Micro Pro: One per set
・ Conthru 12-pin or 13-pin: 2 per set
・ CR1632 coin battery: 2 per set
* For purchase destinationsBuild guide It is described in.

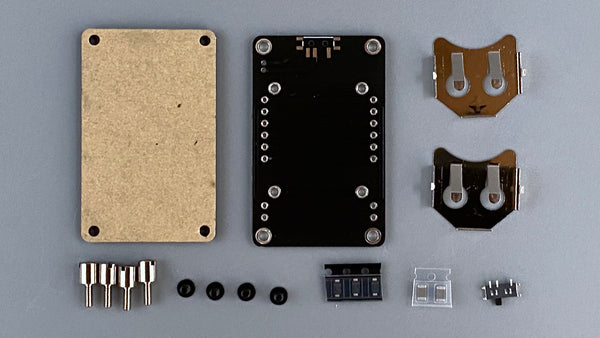

set content
・ Board: 1 sheet・ Cover acrylic plate: 1 sheet
・ Slide switch: 1 (+ 1 spare)
・ Battery holder: 2
・ Schottky diode: 2 + spare
・ Capacitor: 1
・ Screw (4mm): 4
・ Spacer with screw: 4 pieces
・ 2-pin control: 1
Precautions
-Cannot be used with wings42 beta version.HerePlease purchase from.

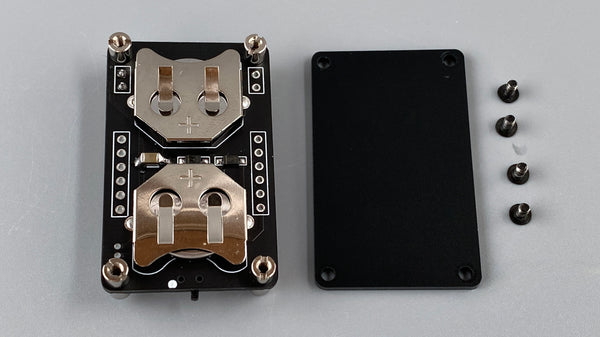

The photo is a sample created and is not the same as the product content.
Specifications are subject to change without notice.
If you have any questions about defective parts, missing parts, etc.Inquiry formPlease contact us from.
