It will be a self-made keyboard kit wings42 v2.
* This product is an assembly-type kit that requires soldering.
Build guidePlease read carefully and understand the necessary tools and processes before purchasing.
If you are worried about soldering"Assembly service"Please consider using. (Details below)
What I wanted to achieve with wings42
With Claw44, I made a standard keyboard for myself as a split keyboard. Next, I wanted a compact and easy-to-carry keyboard, so I made the bat43 with a narrow pitch. I liked the narrow pitch of the bat43 more than I expected, and wanted a split keyboard with a narrow pitch, so the wings 42 was developed.
In addition, as a new attempt, the ProMicro protective plate part has been modularized so that various arrangements can be made, such as increasing the number of key switches and adding a rotary encoder. By adding your own customization, you can make the keyboard more attached to you.
Changes in v2
-Compatible with USB Type-C Pro Micro and included as standard
・ Along with that, the outer shape of the main body plate has been partially changed.
-The outer shape of the expansion plate has extended slightly toward the back.
(You can also install a v1 plate, but if you use Pro Micro Type-C, Pro Micro will stick out a little)
feature
・Left and right split type・ Kailh low profile switch (Choc) only
・ Claw44 Key layout that fits in the hand that cares for the thumb and little finger of Yuzuri
・ Bat43 Yuzuri's narrow pitch (17x18mm) array
(The spacing between general key switches is narrower than 19x19mm)
・ Pro Micro has a conthrough so it can be removed.
・ Pro Micro is Type-C compatible and included as standard
・ Wireless support is possible by using BMP

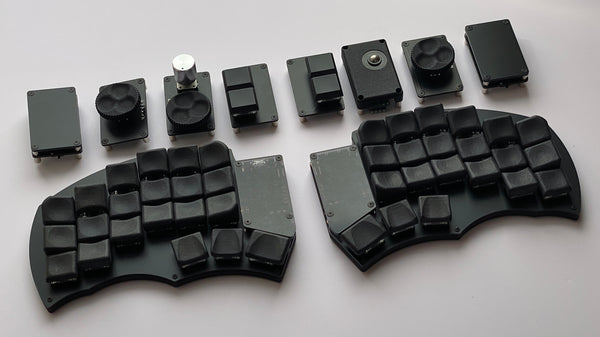

・ Expansion plate can be used
--Key switch expansion

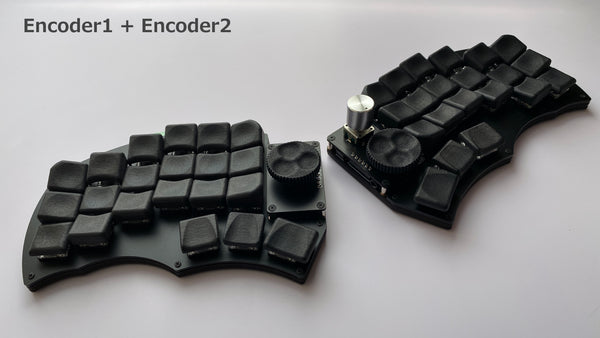

--Rotary encoder expansion
--Trackball case

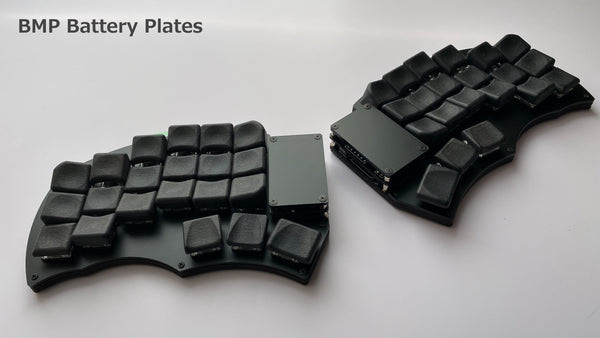

--BMP battery plate
How to assemble
-With independent left and right boards, mistakes such as attaching parts in reverse are unlikely to occur.
-Key switch socket is not supported (solder directly to the key switch)
・ Diode becomes a surface mount diode
For more information"Build Guide"Please confirm.
Expansion plate
The expansion platewings42 v2 collectionPlease purchase from.
Please refer to the build guide on each purchase page for how to assemble.
firmware
・ Remap, QMK, VIA compatibleset content
・ Board: 2 sheets
・ Top plate: 2 sheets
・ Middle plate: 2 sheets
・ Bottom plate: 2 sheets
-Pro Micro Type-C Blue: 2 (farm written)
・ SMD diode: 46 + spare
-ProMicro protective plate: 2 sheets
・ Conthru: 4
・ Screws (7mm): 22
・ Low head screw (5 mm): 8
・ TRRS jack: 2 pieces
・ Tact switch: 2
・ Spacer (6mm): 8 pieces
・ Through hole taps: 14
・ Cushion rubber: 12 pieces
Other things you need
・TRS or TRRS cable: 1 copy・USB cable: 1 copy
・Key switch for Choc v1: 42
・Keycap for Choc v1：42個 or Gravity Keycaps
Assembly service
It is an assembly service for those who are worried about soldering.
・ At the same time as this productKey switch (42 or more)、wings42 assembly servicePlease purchase at the same time.
-Because the key switch needs to be soldered, be sure to purchase the key switch at the same time.
・ If you want to assemble a BMP battery plate
BMP battery plate assembly servicePlease refer to.
・ If you want to assemble a trackball case
Trackball module assembly servicePlease refer to.
-Other plate assembly is included within the wings42 assembly service.
Precautions
The photo is a sample created and is not the same as the product content.
Specifications are subject to change without notice.
If you have any questions about defective parts, missing parts, etc.Inquiry formPlease contact us from.
